AS/NZS 1170.2 (2021) Wind Load Calculations

To calculate the wind load pressures for a structure using SkyCiv Load Generator, the process is to define first the code reference. From there, the workflow is to define the parameters in Project Details, Site Data, and Structure Data, respectively. However, free users can only use the calculation for a gable or pitched roof for a maximum of 3 solves per week. With a Professional Account or by purchasing the standalone Load Generator module, you can use all the features of this calculation as long as you want. You can purchase the standalone module thru this link.

Calculating the wind speeds can be a complex process in AS/NZS 1170.2  (2021) for site locations in Australia and New Zealand. That’s why SkyCiv has developed an online wind load tool to help calculate the design wind speed and pressures via our interactive Google Map. Users can also click and drag the marker to move the site location:

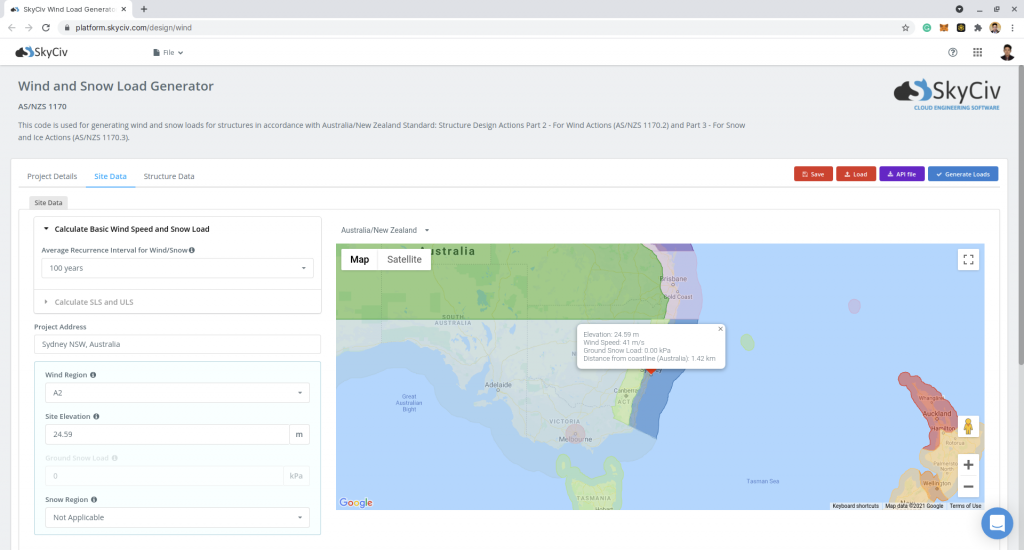

SkyCiv Load Generator UI
Figure 1. SkyCiv Load Generator UI

Site Data

Basic Wind Speed

The software will calculate the basic wind speed, VR, based on AS/NZS 1170.0 and AS/NZS 1170.2.

Serviceability and Ultimate Limit State Wind Speeds

Users can also pull the Serviceability Limit State (SLS) and Ultimate Limit State (ULS) wind speeds for both Australia and New Zealand. It uses the Annual Probability of Exceedance for based AS/NZS 1170.0 and calculated via the following input. Simply define in the following input:

  • Country – Australia or New Zealand
  • Design Working Life – how long the structure is intended to be used. For instance, is the structure used for construction purposes (e.g. scaffolding) or is the design working life longer term, for say buildings and bridges. The longer the design working life, the higher the basic wind speed (to account for significance). Here, the SLS only increases up to DWL of less than 25 years.
  • Importance Level – The importance level is governed the type of structure and it’s potential impact. Click the (i) for more information about which importance level is correct for your structure.
  • Project Address – the address where the site is located

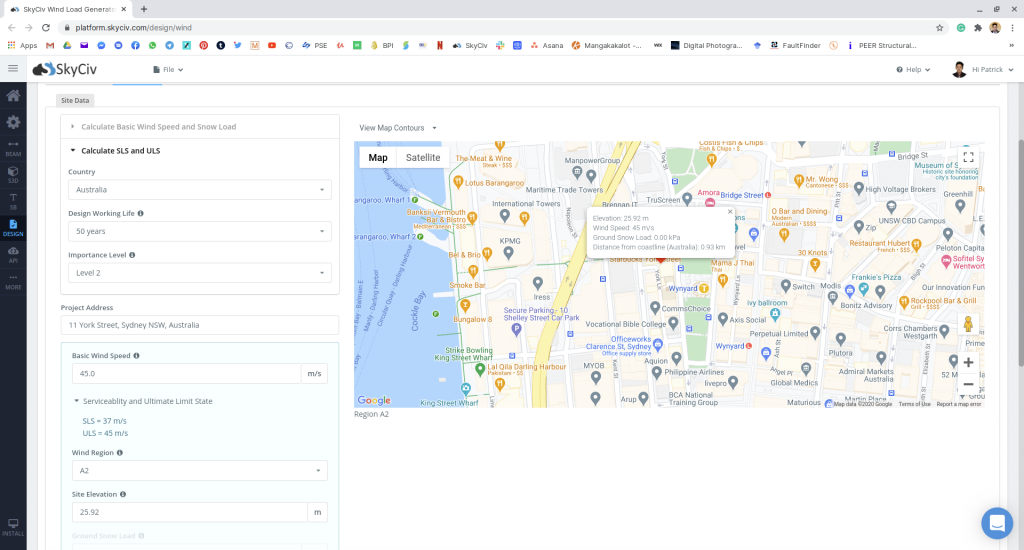

Here is an example of the SkyCiv Load Generator getting the basic wind speed for Queenstown, New Zealand (by default the basic wind speed will be the largest of SLS and ULS values):

AS/NZS 1170.2 Site Parameters
Figure 2. SLS/ULS input parameters.

Note that the user should double check if the wind region detected for the location is accurate based on Figures 3.1(A) and 3.1(B) of AS/NZS 1170.2 in order to obtain the appropriate wind speed for the structure. The Site Data should look like this:

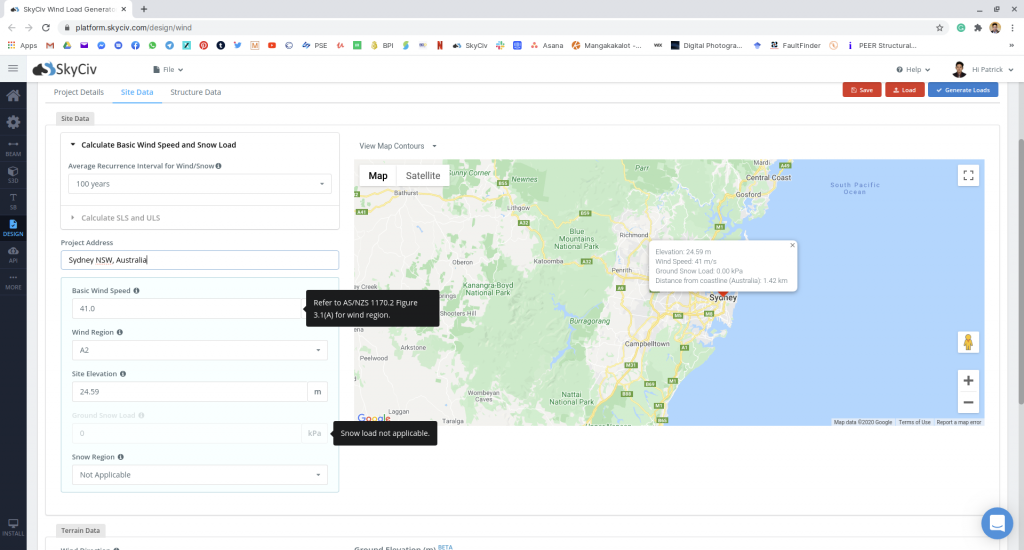

AS/NZS 1170.2 Site Wind Data
Figure 3. Wind speed results from database.

Site Input Parameters for Wind Load Calculation

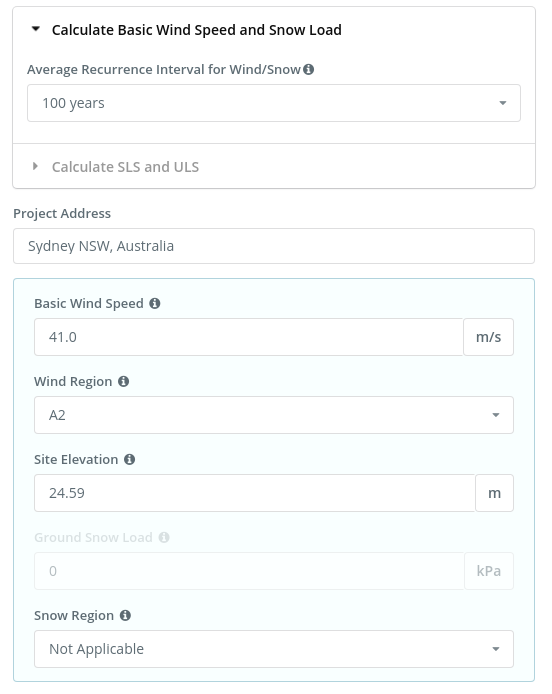

Basic Wind Speed-  the basic wind speed to be used in calculating the design wind pressure. This is automatically determined based on Annual Probability of Exceedance and Project Address and can be modified by the user
Wind Region
Used in determining the basic wind speed V value
Site Elevation – determined from Google Maps API

Once the parameters above are completed, we can now proceed to the Structure Data section.

Structure Data

The structure data and the wind and snow parameters are separated into different accordions. In order to calculate design wind pressures, the wind load checkbox should be checked. You need to define first the Structure you are analyzing. Right now, the available structures for AS/NZS 1170.2 are as follows:

  • Building – supports the following roof profile:
    • Gable, Hip, Monoslope (enclosed, partially enclosed, or partially open)
    • Troughed, Pitched, Open Monoslope (open)
  • Solar Panels
    • Ground-mounted
    • Rooftop
  • Pole

In this documentation, we will focus on building structure.

AS/NZS 1170.2 Structure Data input parameters

Figure 4. Structure data input for buildings.

For building structure, we need to fill the structure dimensions as shown in the building figure above. The option for the roof profiles are as follows:

  • Gable
  • Monoslope
  • Hip
  • Pitched (open gable)
  • Troughed (open inverted gable)
  • Open Monoslope

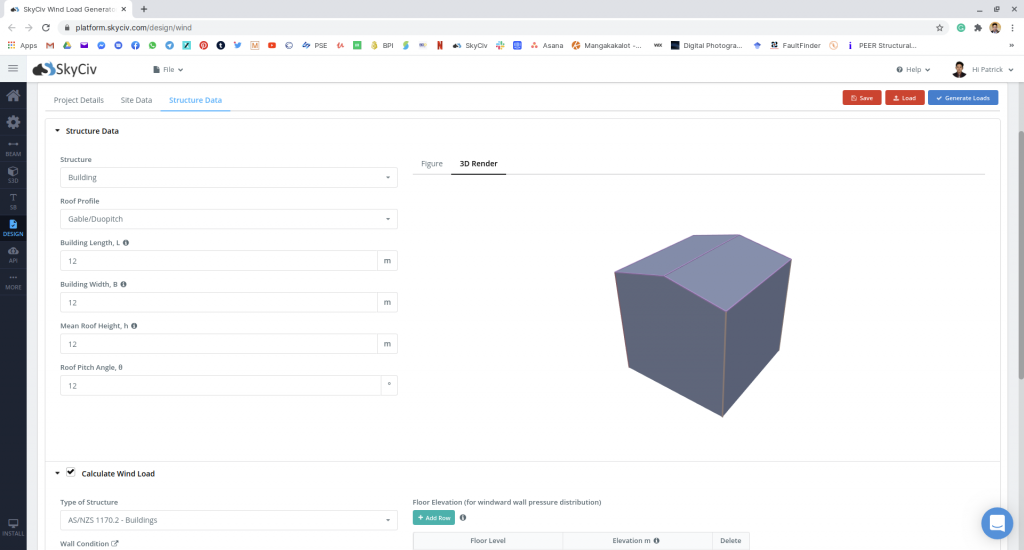

For free users, only Gable and Pitched roof are available for Building. Once you have completed all the structure data inputs, you can visualize the structure by clicking the 3D Render at the right side. In addition, note that the building length is defined as the dimension parallel to the wind direction (as shown in arrow) and the building width is perpendicular to the wind direction.

Structure Input Parameters for Wind Load Calculation

Roof ProfileUsed in pressure coefficient values based on the selected roof profile and roof pitch angle
Building Length – the dimension parallel to the wind direction as defined in AS/NZS 1170.2. Used in calculation of pressure coefficients
Building Width –  the dimension perpendicular to the wind direction as defined in AS/NZS 1170.2. Used in calculation of pressure coefficients
Mean Roof Height –  the dimension of the structure from ground to the middle height of the sloping roof. Used in calculation of velocity pressure
Roof Pitch Angle – the roof slope in degree. Used in calculation of pressure coefficients
Building Openings Data – for defining the permeability of wall surfaces and used in calculating the Kv, Cpi and Cshpi values

Building Openings data for wind load calculation

Figure 5. Building Openings input data for buildings.

Once the parameters above are completed, we can now proceed to the Wind Load Parameters section.

Wind Data

To proceed with our wind load calculation, we need to check the checkbox first beside the Wind Load button. By default, this is checked when the site wind data has been defined.

AS/NZS 1170.2 Wind Load Calculation

Figure 6. Checkbox for Wind Load Data.

The next step, is to define the Wind Source Direction the corresponding Terrain Category of the upwind area. The Wind Direction parameter is used in obtaining the upwind (left side) and downwind (right side) ground elevations to calculate for Hill-shape Multiplier, Mh. In addition, the Terrain Category is used in determining the Terrain/Height Multiplier Mz,cat. For standalone users or Professional account, you determine the select the worst wind source direction by clicking the View Design Wind Inputs for All Directions button so you can set the Terrain Category per upwind Wind Source Direction as represented by a 45-degree sector.

AS/NZS 1170.2 Worst Case Wind Source Direction

Figure 7. Worst Case Wind Source Direction.

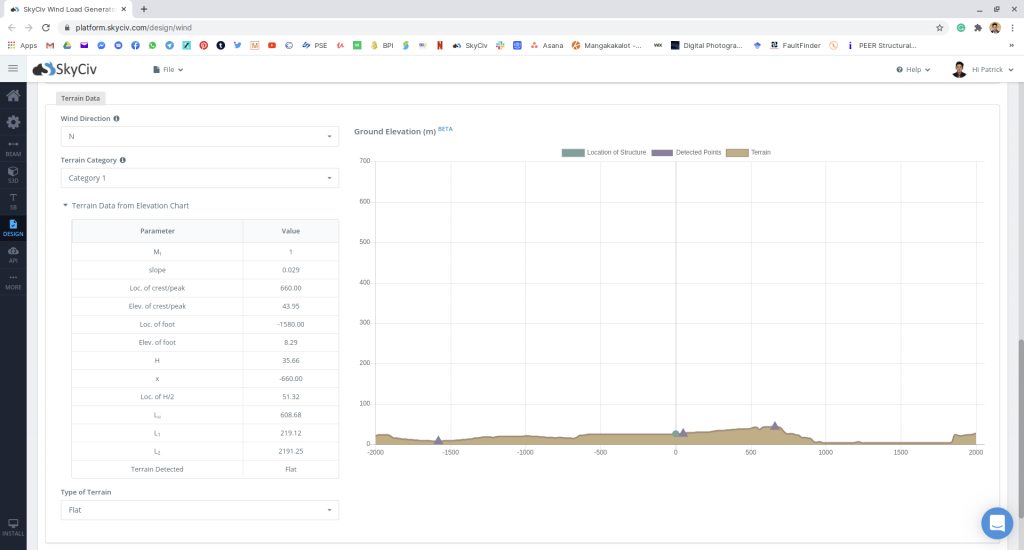

Elevation Data from Google Maps for upwind and downwind direction
Figure 8. Elevation Data from Google Maps for upwind (left) and downwind side (right).

Topography Input Parameters

Wind Source Direction – used to obtain the elevation data on a specific direction section of the area. These elevation ata are used in determining the Hill-shape Multiplier, Mh
Lee Multiplier – (for New Zealand) used as value for Mlee and used in determining the Topographic Multiplier, Mt. Default value is equal to 1.0
Shielding Multiplier –
used as value for Ms and used in determining the design wind speed. Default value is equal to 1.0
Type of Terrain
–  Options to select Flat, Escarpment, Hills and Ridges
H –  Height of obstruction/terrain. For type of terrain is set to option other than Flat terrain, this is used in calculating the Hill-shape Multiplier, Mh
Lu –  Horizontal distance from peak to the middle height of the obstruction. For type of terrain is set to option other than Flat terrain, this is used in calculating the Hill-shape Multiplier, Mh
x –  Horizontal distance of structure to the peak of the obstruction with the peak as the point of reference. For type of terrain is set to option other than Flat terrain, this is used in calculating the Hill-shape Multiplier, Mh

Topography parameters for AS/NZS 1170.2

Figure 9. Topography Parameters for AS/NZS 1170.2.

Wind Input Parameters for Buildings

Type of StructureRequired to be set to AS/NZS 1170 Buildings
Orthogonal Axis Orientation – Used in calculating the Vdes,θ value in order to account for the axis parallel to L orientation of the building relative to wind direction being considered
Action Combination Case –
For calculation of combination factor for external Kce and internal Kci pressures. Can be defined by clicking the label to show the options.
Ratio of Dominant Opening to Total Open Area of other walls  –  For wall condition with dominant opening, used in determining the internal pressure coefficient Cshpi for enclosed roof profiles
Is building elevated?
Option for calculating the windward wall external pressure coefficient
Floor Elevation –  Since the wind pressure acting on the windward is parabolic in nature, this is used to approximate this pressure by assigning multiple rectangular pressure acting on the wall in between the level
User-defined Design Wind Speed Vdes,θ –  For user-defined override on the Design Wind Speed used in the wind pressure calculation

AS/NZS 1170 Wind Load Parameters
Figure 10. Wind Parameters for Building.

Wind Input Parameters for Cladding

Type of StructureRequired to be set to AS/NZS 1170 Buildings
Orthogonal Axis Orientation – Used in calculating the Vdes,θ value in order to account for the axis parallel to L orientation of the building relative to wind direction being considered
Wall Condition –
For calculation of internal shape coefficient Cshpi for enclosed roof profiles. Can be defined by clicking the label to show the options.
Action Combination Case –
For calculation of combination factor for external Kce and internal Kci pressures. Can be defined by clicking the label to show the options.
Ratio of Dominant Opening to Total Open Area of other walls  –  For wall condition with dominant opening, used in determining the internal pressure coefficient Cshpi for enclosed roof profiles
Is building elevated?
Option for calculating the windward wall external pressure coefficient
Effective Area of Wall Cladding – Can be a comma-separated value (i.e. 23,44,20) for multiple effective wind area. Used in calculating the design wind pressure for wall claddings or components
Effective Area of Roof Cladding – Can be a comma-separated value (i.e. 23,44,20) for multiple effective wind area. Used in calculating the design wind pressure for roof claddings
Cladding Permeable? Used in determing the Permeable Cladding Pressure Reduction factor Kp
Floor Elevation –  Since the wind pressure acting on the windward is parabolic in nature, this is used to approximate this pressure by assigning multiple rectangular pressure acting on the wall in between the level
User-defined Design Wind Speed Vdes,θ –  For user-defined override on the Design Wind Speed used in the wind pressure calculation

Wind parameters for components and cladding

Figure 11. Wind Parameters for Cladding.

After all these parameters are defined, the next step is to click the Calculate Loads on the upper right side of the UI.

Results

The results of the calculation are shown as follows:

AS/NZS 1170.2 Building Results

Figure 12. Wind results for Building

AS/NZS 1170.2 Cladding Pressures

Figure 13. Wind results for Cladding

The summarized results are shown on the right side of the screen. Other results are shown on the detailed report.

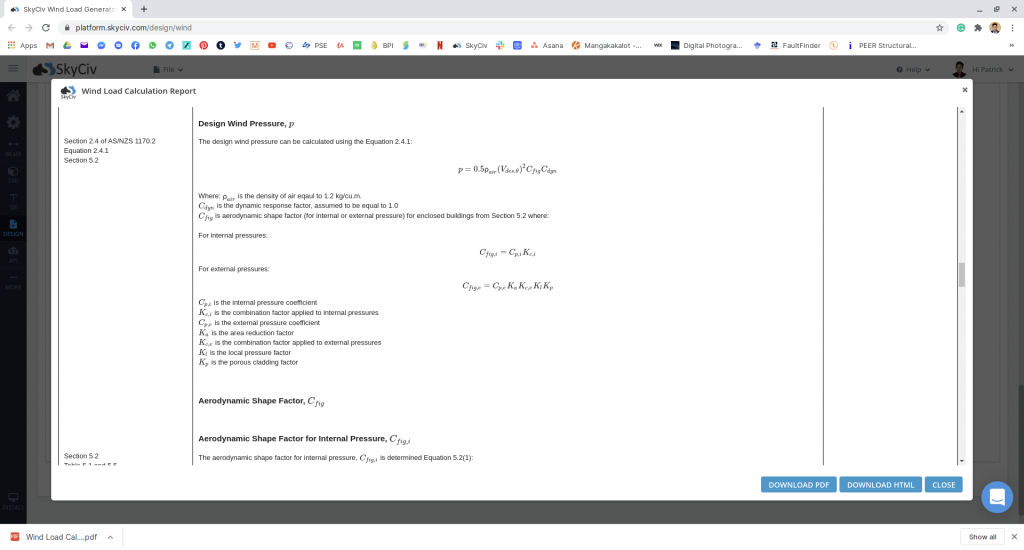

Detailed Calculation

The detailed wind load calculations can be accessed only by Professional account users and those who purchased the standalone load generator module. All the parameters and assumptions used in the calculation are displayed on the report to make it transparent to the user. You can download a sample detailed calculation thru the following links:

AS/NZS 1170.2 Detailed Report for Building
AS/NZS 1170.2 Detailed Report for Cladding

AS/NZS 1170.2 Detailed Wind Report
