SkyCiv Slab Design Software
Design floors quickly and easily using powerful meshing, analysis, and optimization functionality. Design complex slabs (via plates) from SkyCiv Structural 3D analysis software. The software allows users to easily assign different reinforcement regions, perform design checks and optimize reinforcement as per ACI and EN requirements.
This design module combines slab design with the easy-to-use analysis and modelling capabilities of SkyCiv Structural 3D.
Discover key features of SkyCiv Slab Design Software

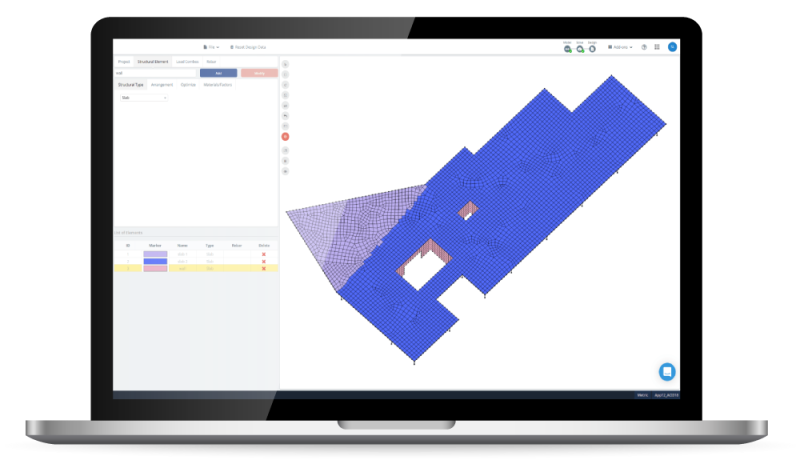

Powerful Meshing
- Mesh any complex S3D model
-
Auto generate your meshing in seconds
- Import meshes from other software (coming soon)
- Pick from a range of meshing methods including frontal, adaptive, delaunay and parallelogram packing
- Control mesh sizes and granularity
- Automatically detect and attach columns, members and cutouts
Reinforcement Design
The software is built on SkyCiv Structural 3D, which includes powerful FEA capabilities. The software imports the results of this analysis into the final design calculations.

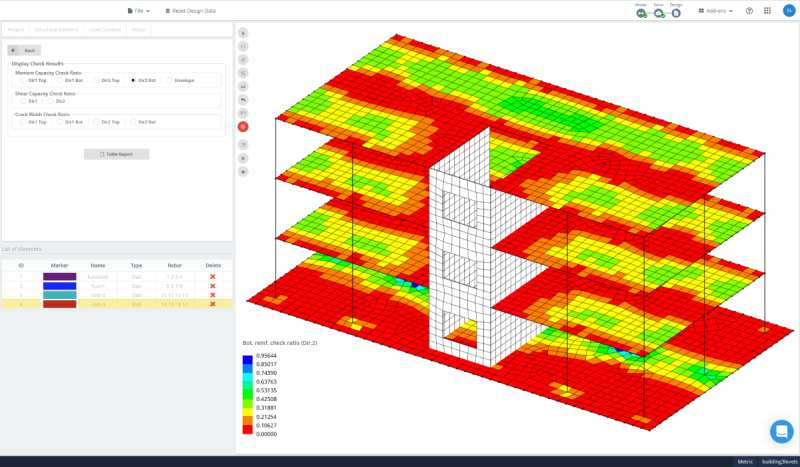

Once the reinforcement is defined, design check ratios are clearly displayed using a color scaled result with an accompanying scale.
Results are displayed in both directions for moment, shear and cracking requirements.

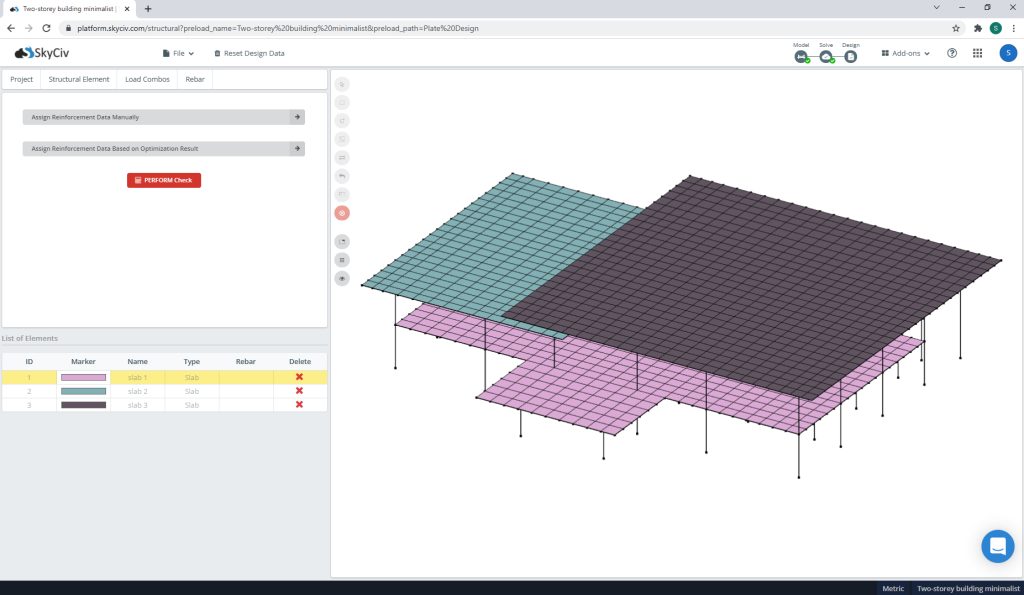

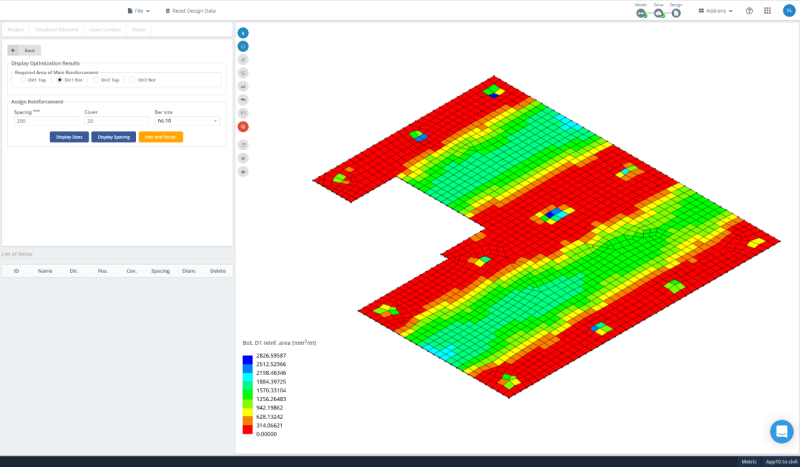

Reinforcement Optimization
The SkyCiv slab and wall design module also has the capabilities for reinforcement optimization and checking based on different criteria, including: concrete cover, rebar orientation, rebar spacing, member type, and others.
Control the domains or regions to design under different reinforcement settings, to help minimize materials and design more efficiently.
Design on-way and two-way slabs as well as walls subjected to combined membrane and plate load components. Design check of slabs is based on Wood-Armer method.
The software currently supports ACI 318 2019 and EN 1992-1-1:2004 design standards.
100% Online
SkyCiv software is all on the cloud, which means you can get instant access simply through a web browser. There is nothing to download, install or maintain. Simply login to your SkyCiv Account and visit the software directly. Having the software 100% online has a range of benefits over traditional software:
- Instant access - there's nothing to download, no installation and no license keys
- Updates are automatically rolled out to the user
- Access your files and software from anywhere at anytime
- Fully compatible on PC, MAC, tablets and mobile devices
- Reduces the clutter on your computer
- No IT requirements
More benefits from SkyCiv
SkyCiv structural design software is 100% cloud, giving you instant access through your web browsers. Simply log into your SkyCiv account and visit the software directly. You can now access your files from anywhere and at any time.
SkyCiv software is built with a number of great modeling, editing, and reviewing features that help you achieve a much faster modeling workflow. These range from the pen tool, bulk editing, camera roll, and more.
Learn about SkyCiv modeling features →
SkyCiv software allows you to tailor your own analysis reports in PDF and CSV formats, with full step-by-step calculations made by the software.
Learn about reporting →
Share and collaborate in real-time with your team using our file sharing and permission control functionalities. They also allow the SkyCiv Support team to view your models so support can never be easier.
Learn about file sharing →
One account gives you access to all SkyCiv software, allowing you to make the most of our structural engineering software.
Learn about SkyCiv software list →
