カットアウトと穴

In some circumstances, you may wish to define a section with a circular or non-circular geometry cut out from another shape. It is important to note that cutouts must be completely within another shape. これは、カットアウトが負の形状を表しているためです。. 正のジオメトリ内にない負のジオメトリを持つことは意味がありません.

例: A hole cut out of a rectangular section

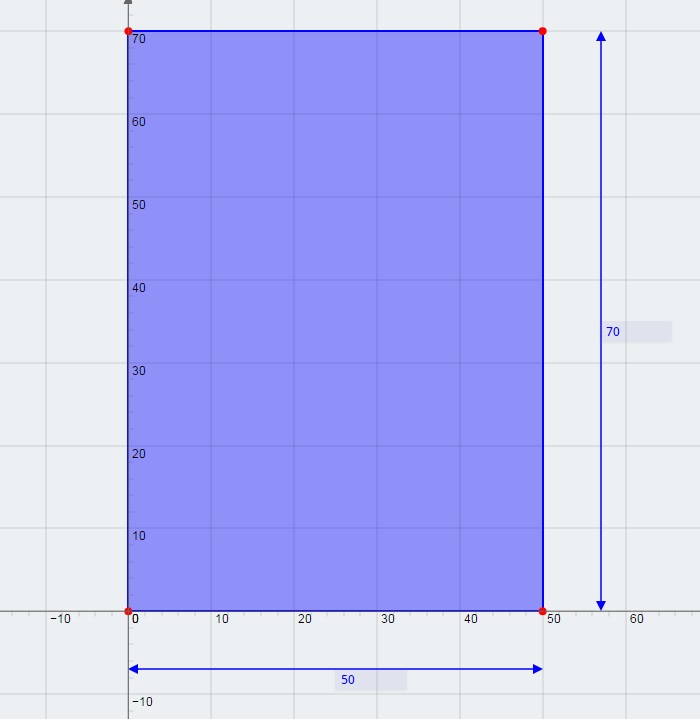

1) Add a rectangular shape and resize the width to 50 mm and the height to 70 んん.



2) Make sure the ‘Clear Otherscheckbox is unticked.

スプレッドフーチングを設計する方法 14

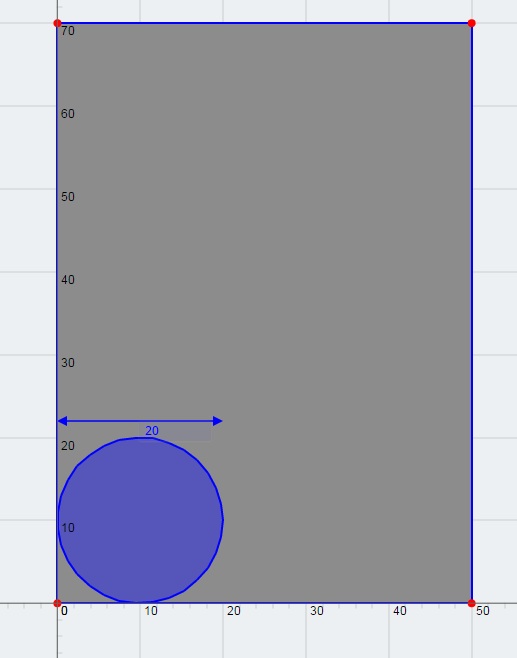

3) Add a circular shape and resize the diameter to 20 んん.

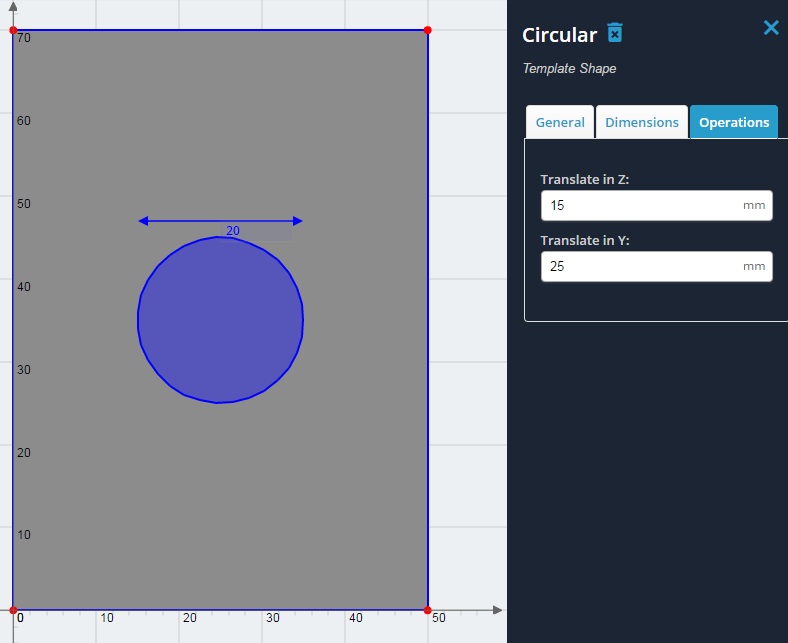

4) Translate the circle by 15 Z軸方向 mm, そして 25 中央にくるように Y 軸方向に mm.

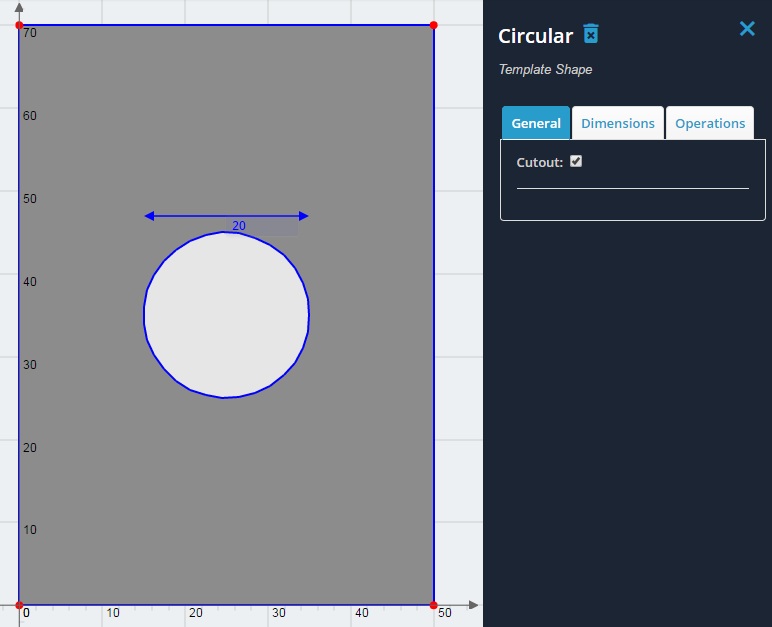

5) Turn the circle into a hole by clicking the ‘General’ 円形選択時のタブ. 「カットアウト」のチェックボックスにチェックを入れます. The circle is now a hole, セクションは「計算」をクリックして解決できます’ 普段通り. Compare the results to when there is no hole present.
