結果と表示

線形静的

U, 変位. In this panel you define settings for displaying the displacements contour.

Result component – direction of node displacements output according to the global axis direction.

Plate side view – Shell finite element surface side for which the results will be displayed

Deformed view – Display the deformation of the model according to the Uxyz node displacements with the specified scale value.



RF, 反応. In this panel you define settings for displaying the reaction forces contour.

Result component – direction of nodal reaction force output according to the global axis direction.

Plate side view – Shell finite element surface side for which the results will be displayed

Deformed view – Display the deformation of the model according to the Uxyz node displacements with the specified scale value.



S, ストレス. In this panel you define settings for displaying the stress contour.

Result component – direction of nodal stress output according to the global axis direction.

Plate side view – Shell finite element surface side for which the results will be displayed

Deformed view – Display the deformation of the model according to the Uxyz node displacements with the specified scale value.



S,ひずみ. In this panel you define settings for displaying the strain contour.

Result component – direction of nodal strain output according to the global axis direction.

Plate side view – Shell finite element surface side for which the results will be displayed

Deformed view – Display the deformation of the model according to the Uxyz node displacements with the specified scale value.



線形座屈

U, 変位. In this panel you define settings for displaying the displacements contour.

Result step – buckling mode and buckling factor value.

Set as Imperfection – convert the buckling mode into the imperfection. Will be displayed in the Imperfections > From Buckling panel.

Result component – direction of node displacements output according to the global axis direction.

Plate side view – Shell finite element surface side for which the results will be displayed

Deformed view – Display the deformation of the model according to the Uxyz node displacements with the specified scale value.



ジオメトリ + 材料非線形静的

U, 変位. In this panel you define settings for displaying the displacements contour.

Result step – results will be displayed for selected load step of nonlinear analysis (load step factor from 0 に 1.0)

Result component – direction of node displacements output according to the global axis direction.

Plate side view – Shell finite element surface side for which the results will be displayed

Deformed view – Display the deformation of the model according to the Uxyz node displacements with the specified scale value.



RF, 反応. In this panel you define settings for displaying the reaction forces contour.

Result step – results will be displayed for selected load step of nonlinear analysis (load step factor from 0 に 1.0)

Result component – direction of nodal reaction force output according to the global axis direction.

Plate side view – Shell finite element surface side for which the results will be displayed

Deformed view – Display the deformation of the model according to the Uxyz node displacements with the specified scale value.



オン, ストレス. In this panel you define settings for displaying the plasticity contour.

Result step – results will be displayed for selected load step of nonlinear analysis (load step factor from 0 に 1.0)

Result component – equivalent plastic strain output.

Plate side view – Shell finite element surface side for which the results will be displayed

Deformed view – Display the deformation of the model according to the Uxyz node displacements with the specified scale value.

Status – Display finite element status: Elastic – contour of elastic material behavior zones, Allowable straincontour of plastic material behavior zones with strain value less or equal to the specified Limit Strain [%], Failure Straincontour of plastic material behavior zones with strain value more then specified Limit Strain [%].



Geometry Nonlinear Static

U, 変位. In this panel you define settings for displaying the displacements contour.

Result step – results will be displayed for selected load step of nonlinear analysis (load step factor from 0 に 1.0)

Result component – direction of node displacements output according to the global axis direction.

Plate side view – Shell finite element surface side for which the results will be displayed

Deformed view – Display the deformation of the model according to the Uxyz node displacements with the specified scale value.



RF, 反応. In this panel you define settings for displaying the reaction forces contour.

Result step – results will be displayed for selected load step of nonlinear analysis (load step factor from 0 に 1.0)

Result component – direction of nodal reaction force output according to the global axis direction.

Plate side view – Shell finite element surface side for which the results will be displayed

Deformed view – Display the deformation of the model according to the Uxyz node displacements with the specified scale value.



S, ストレス. In this panel you define settings for displaying the stress contour.

Result step – results will be displayed for selected load step of nonlinear analysis (load step factor from 0 に 1.0)

Result component – direction of nodal stress output according to the global axis direction.

Plate side view – Shell finite element surface side for which the results will be displayed

Deformed view – Display the deformation of the model according to the Uxyz node displacements with the specified scale value.



S,ひずみ. In this panel you define settings for displaying the strain contour.

Result step – results will be displayed for selected load step of nonlinear analysis (load step factor from 0 に 1.0)

Result component – direction of nodal strain output according to the global axis direction.

Plate side view – Shell finite element surface side for which the results will be displayed

Deformed view – Display the deformation of the model according to the Uxyz node displacements with the specified scale value.

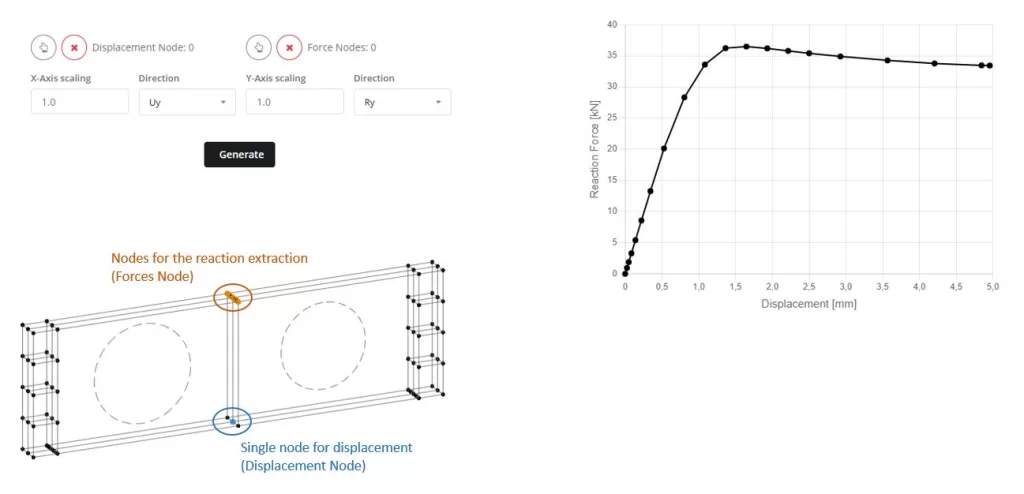

Chart

Display nodal force-displacement diagram from all the nonlinear steps. For Displacement Node pick the node from which the vertical deflection can be extracted. For Forces Nodes pick the nodes from which the vertical reaction force is extracted. Select the direction of reaction and displacement directions. Define scaling factors and click the Generate button.

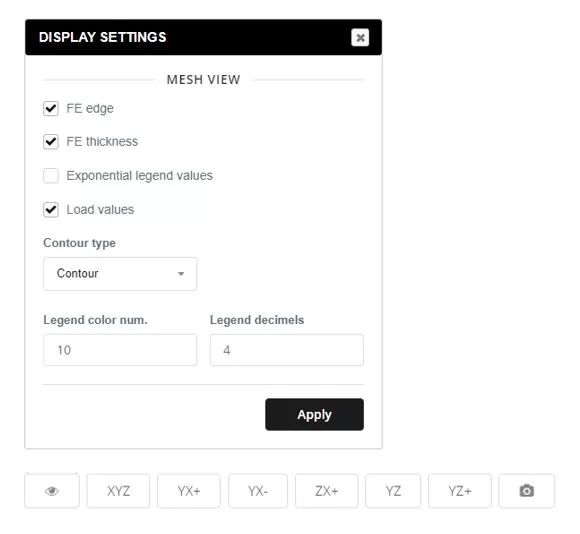

ディスプレイの設定

FE edge – display/hide FE edge in the 3D meshed model.

FE thickness – display/hide the actual thickness of FE.

Exponential legend values – display or not the results legend values in exponential format.

Load values – display/hide values labels at the directed load arrows in 3D model view.

Contour type – types of results contour style in the 3D model view.

Legend color number – number of colors in the legend with the result values.

Legend decimals – number of digits after the coma in the legend result values.

XYZ … YZ+set view camera to be targeted to the selected plane in 3D.

Camera – save the displayed model 3D view to the local image file.
