AS / NZS 1170 Υπολογισμός φορτίου χιονιού

Χρήση του SkyCiv Load Generator σε AS / NZS 1170.3 Υπολογισμοί φορτίου χιονιού

Για τον υπολογισμό των πιέσεων φορτίου χιονιού για μια δομή χρησιμοποιώντας το SkyCiv Load Generator, η διαδικασία είναι να ορίσετε πρώτα τον κωδικό αναφοράς. Από εκεί, η ροή εργασίας είναι να καθορίσει τις παραμέτρους στο Project Tab, Καρτέλα ιστότοπου, και Δημιουργία καρτέλας, αντίστοιχα. Ωστόσο, Μόνο οι χρήστες με επαγγελματικό λογαριασμό ή που αγόρασαν την αυτόνομη μονάδα Generator φόρτωσης θα μπορούν να χρησιμοποιήσουν αυτόν τον υπολογισμό. Μπορείτε να αγοράσετε την αυτόνομη μονάδα μέσω αυτού Σύνδεσμος.

Δεδομένα ιστότοπου

Using the AS/NZS 1170 snow load calculation, you need to define the Annual Recurrence Interval or the SLS/ULS parameters. After selecting the options for these parameters, you need to put the address of the structure. The corresponding snow load for the address will be automatically calculated. Take note that this value is based on the following:

  • Ενότητα 2 του AS / NZS 1170.3 for classification of snow regions based on Figures 2.1 και 2.2 and based on elevation
  • Τραπέζι 5.2 for specific locations in Australia

Take note that the snow region classification automatically displayed in the module shall prioritize the classification of the area based on elevation. To display the snow region map based on Figures 2,1 και 2.2, you need to clickView Map Contours” και μετά επιλέξτε “Χιόνι” – “Australia/New Zealand.For Australian locations indicated in Table 5.2, the user should selectTerrain Classification for Snowas given in AS/NZS 1170.3 Συμπ 1.

AS / NZS 1170 δεδομένα φορτίου χιονιού
Φιγούρα 1. Καρτέλα ιστότοπου του SkyCiv Load Generator

Δεδομένα δομής

Τα δεδομένα δομής και οι παράμετροι ανέμου και χιονιού χωρίζονται σε διαφορετικά ακορντεόν. Για τον υπολογισμό των φορτίων χιονιού, πρέπει να είναι επιλεγμένο το πλαίσιο ελέγχου φορτίου χιονιού.

AS / NZS 1170.2 snow paramters for alpine region
Φιγούρα 2. Παράμετροι φορτίου χιονιού στο SkyCiv Load Generator

Snow Exposure Category

This parameter is used in getting Exposure Reduction Coefficient Cμι. The definition of each option is defined in table below:

Κατηγορία έκθεσης Τιμές πολλαπλασιαστή διεύθυνσης ανέμου ανά περιοχή ανέμου και κατεύθυνση σύμφωνα με τον Πίνακα
Sub-alpine Sites classified as sub-alpine region.
Προφυλαγμένο Sites where roof is protected from the wind by obstructions such as other structures, terrain features or numbers of closely spaced trees higher than the roof.
Semisheltered Sites where roof is only partially protected by numbers of scattered obstructions higher than the roof (π.χ., scattered trees).
Windswept Sites where the roof is exposed on all sides, with no protection provided by obstructions, trees, or terrain features higher than the roof.

Εξετάστε την περίπτωση μη ισορροπημένης / παρασυρόμενης θήκης φορτίου χιονιού?

This parameter is a “Yes” or “No” to calculate for Unbalanced Snow Load Case. Upon selecting “No,” the balanced snow load case shall only be calculated. Αφ 'ετέρου, upon selecting “Yes,” the unbalanced snow load case table will show. There are four options for AS/NZS 1170.3 alpine region:

Drift on duopitch roof

This case is used to calculate the drifted snow load on duopitch/gable roof as shown below:

Snow load drfted case - duopitch
Φιγούρα 3. Parameters for calculating drifted snow load on duopitch/gable roof.

Drift on monopitch roof

This case is used to calculate the drifted snow load on monopitch/monoslope roof as shown below:

Snow load drfted case - monopitch
Φιγούρα 4. Parameters for calculating drifted snow load on monopitch/monoslope roof.

Drift on lower roof

This case is used to calculate the snow load drift on lower roof level.

Snow load drfted case - lower roof
Φιγούρα 5. Parameters for calculating drifted snow load on the lower roof.

Drift on projections and obstruction

This case is used to calculate the snow load drift on obstructions above the roof level such as parapet walls, firewalls, καμινάδες, και τα λοιπά.

Snow load drfted case - obstruction above the roof
Φιγούρα 6. Parameters for calculating drifted snow load on obstructions and projections above the roof.

Αφ 'ετέρου, there are additional two options for AS/NZS 1170.3 sub-alpine region:

Drift on obstructed roof with parapet

This case is used to calculate the snow load drift on parapet walls in sub-alpine region.

Snow load drfted case - obstructed roof with parapet
Φιγούρα 7. Parameters for calculating drifted snow load on obstructed roof with parapet in sub-alpine region.

Drift on obstructed roof with abutting

This case is used to calculate the snow load drift on obstructed roof with abutting in sub-alpine region.

Snow load drfted case - obstructed roof with abutting
Φιγούρα 8. Parameters for calculating drifted snow load on obstructed roof with abutting in sub-alpine region.

Αποτελέσματα

The snow load results will show the parameters in calculating the undrifted snow load for either alpine or sub-alpine region as shown below:

Undrifted snow load case

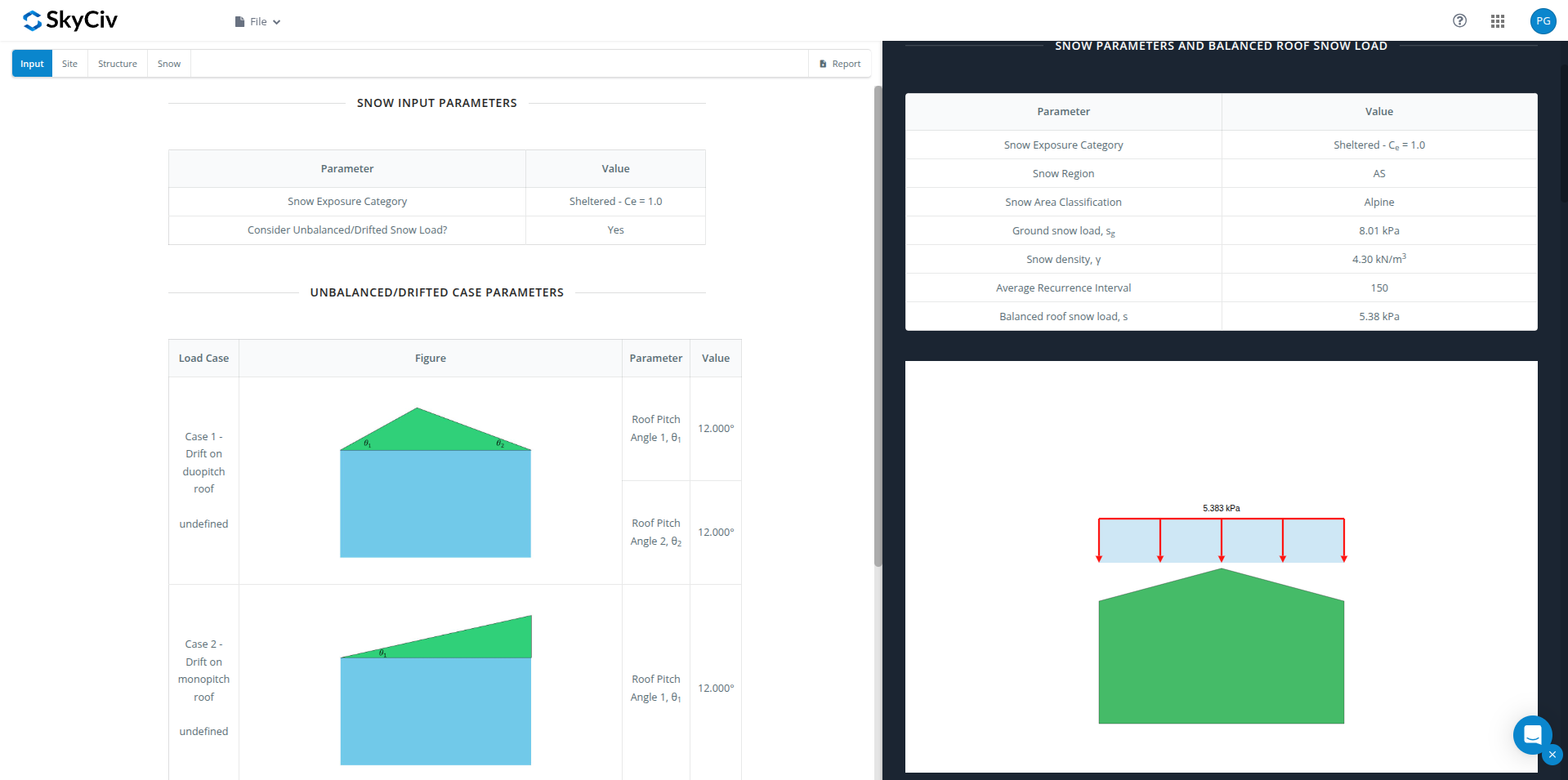

Φιγούρα 9. Snow load parameters used in the calculation and the calculated undrifted snow load

Drifted/Unbalanced Snow Load

Εάν επιλεγεί να ληφθεί υπόψη το Unbalanced / Drifted Snow Load, Τα αποτελέσματα καταγράφονται σε έναν πίνακα ανάλογα με τις περιπτώσεις που ορίζονται:

Drifted snow load case for duopitch
Φιγούρα 10. Sample results for unbalanced/drifted snow load on duopitch and monopitch roof, αντίστοιχα.
Drifted snow load case on lower roof
Φιγούρα 10. Sample results for unbalanced/drifted snow load on lower roof and on projections and obstructions, αντίστοιχα.

Λεπτομερής υπολογισμός

Οι λεπτομερείς υπολογισμοί φορτίου χιονιού είναι προσβάσιμοι μόνο από Επαγγελματίες χρήστες λογαριασμών και εκείνοι που αγόρασαν το αυτόνομη μονάδα γεννήτριας φορτίου. Όλες οι παράμετροι και οι παραδοχές που χρησιμοποιούνται στον υπολογισμό εμφανίζονται στην αναφορά για να καταστούν διαφανείς για τον χρήστη. Μπορείτε να πραγματοποιήσετε λήψη ενός λεπτομερούς δείγματος υπολογισμού μέσω αυτού Σύνδεσμος.

Αναλυτική αναφορά φορτίου χιονιού
