Beam Shell FEA

  1. Σπίτι
  2. Beam Shell FEA
  3. Υλικά και Φόρτωση
  4. Μετατόπιση

Μετατόπιση

ενισχυτικά

The displacements can be applied to the nodes arranged on the edges of stiffeners. Here in the table row, you select the stiffener and its edge and then define the directed displacement with its value. The displacement will be distributed equally among the nodes of the selected edge. The nodal displacement with the values can be previewed by clicking on the Preview button.



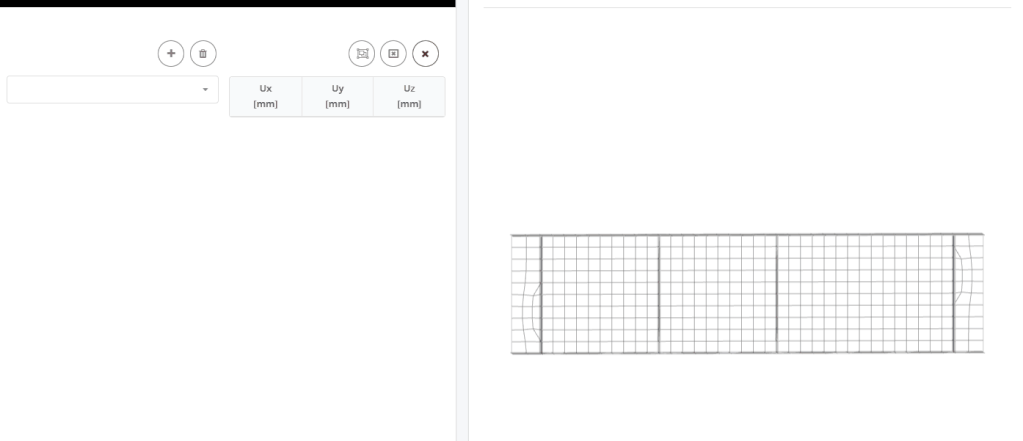

Example of input



Περιοχή

The displacement is applied to the area on a beam flange. Here you select the flange, position of the center of a load area from the left side of a beam (SL), μήκος (μεγάλο), and width (σι) of the area, and directed displacement with its value. The displacement will be distributed among the nodes inside the area. The nodal displacement with the values can be previewed by clicking on the Preview button.



Example of input
