Esportazione dei risultati (Produzione)

Review and Export your results via a PDF Report

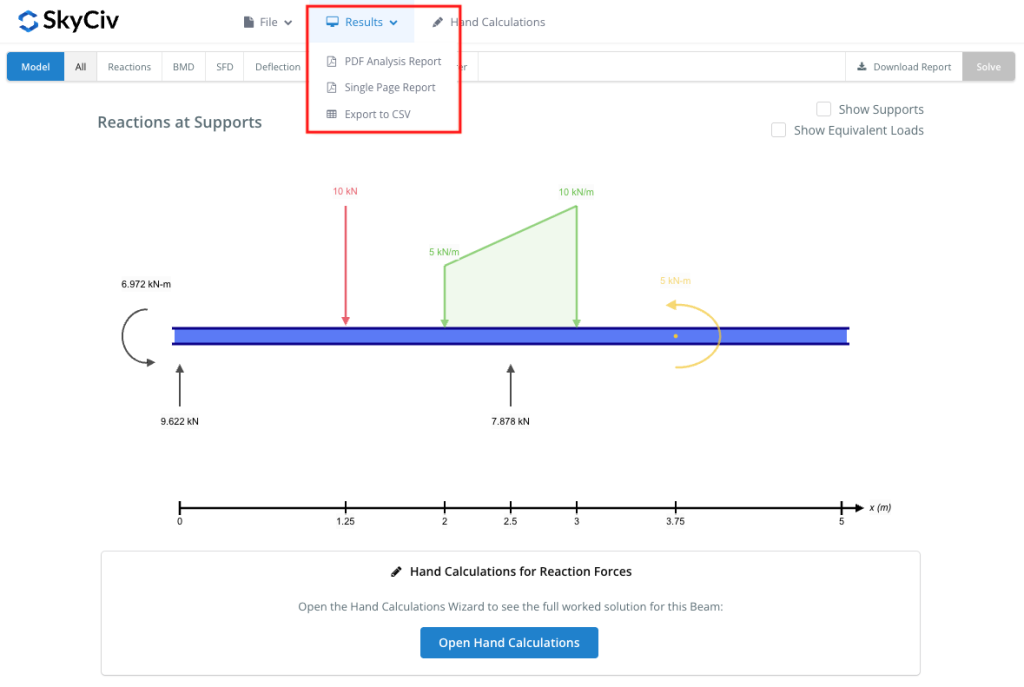

Your results can be exported in various output formats in SkyCiv Beam Software. Simply hover over the ‘Resultsheading at the top to reveal options to export your results:

  • PDF Analysis Report
  • Esporta in CSV

Risultati del raggio SkyCiv


PDF Analysis Report

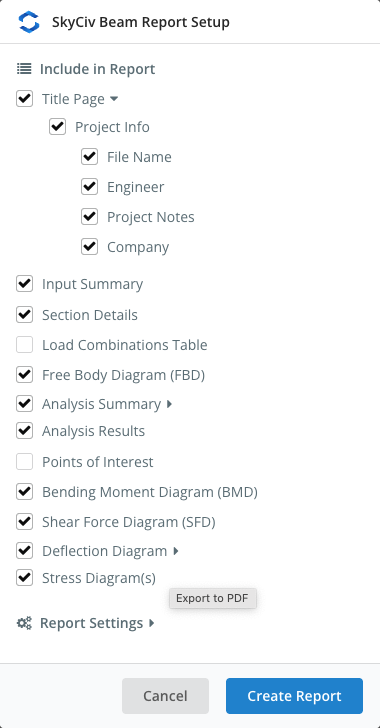

The PDF Analysis report option creates a downloadable PDF of your results. Selecting this option will open a pop-up with options to pick out all or some of the results to be reported on. Click ‘Export’ to generate the PDF.

SkyCiv Beam PDF
You can view a sample PDF file Qui.

Export To CSV

The Export to CSV option creates a file of comma-separated values (CSV) for your analysis results. All analysis results for lengths along the beam are exported with this option and downloaded in a ‘SkyCivBeamResults.csv’ file.

You can view a sample CSV file Qui.

Project Report Manager

SkyCiv Beam now allows you to save reports alongside your files. Reports are automatically saved to your cloud storage when they are generated in the software. This means that you don’t need to resolve your model to access the reports. To ensure that your project reports are saved ensure that you first save your model to cloud storage. You can then access the reports via File > Report Manager.



SkyCiv Beam Project Reports
