Mirroring

Mirroring is one of the operations you may want to perform on your shape to flip it in the correct orientation. Mirrors can be done about the Z axis (orizzontale) or about the Y axis (verticale). Note that the mirror is always performed about a line parallel to said axis, passing through the centroid of the shape.

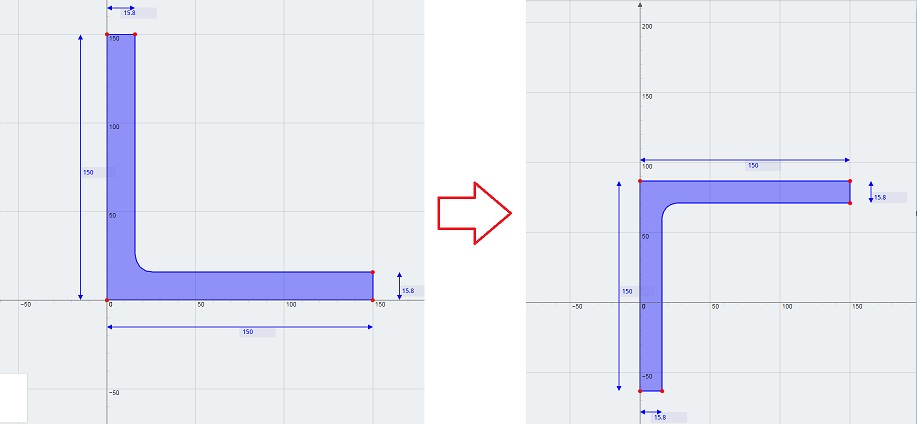

To perform a mirror, simply click that shape you wish to mirror. Nel menu che compare a destra, fare clic su "Operazioni"’ tab. If you wish to perform a horizontal mirror (vale a dire. about an imaginary horizontal line that passes through the centroid), then click ‘Trueunder ‘Mirror via z-axis’.

operazioni 5

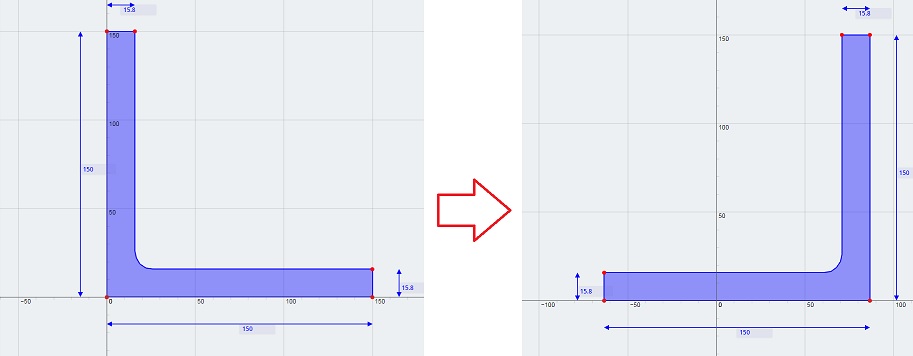

allo stesso modo, if you wish to perform a vertical mirror (vale a dire. about an imaginary vertical line that passes through the centroid), then click ‘Trueunder ‘Mirror via y-axis’.

operazioni 6
