Lid End Fixities (Connectiviteit)

What Member Fixities mean and how they are identified in Structural 3D

Member End Fixities control how members are connected to each other or to the end nodes and include conditions such as a fixed, vastgemaakt, or spring connection.

This Member setting controls how the end of the member connects to its end node, and therefore how members connect to each other. A fixity code is a 6 character code specifying the 6 degrees of freedom for translation and rotation.

Member-end fixity codes accept ‘F’ (Gemaakt) and ‘R’ (Vrijgelaten) waarden. This code refers to the member end’s connection to its end node for each of the 6 degrees of freedom in the following order:

  • Local x-axis Translation
  • Local y-axis Translation
  • Local z-axis Translation
  • Local x-axis Rotation
  • Local y-axis Rotation
  • Local z-axis Rotation

NOTITIE: Member-end fixities are with respect to the member’s local axis system rather than the global axis system.

Bijvoorbeeld, a fully fixed connection between two members (d.w.z. any forces or moments are transferred from one member to the next) will be denoted as ‘FFFFFFwhereas a hinge connection, which cannot transfer moments in the y or z direction, would be coded as ‘FFFFRR’. The ‘Frameand ‘Trussbuttons are preset end fixity conditions commonly used in the analysis:

Kader members have a fully fixed, rigid connection specified by a fixity code of ‘FFFFFF’.

Truss members have a hinged connection denoted by a code of ‘FFFFRR’.

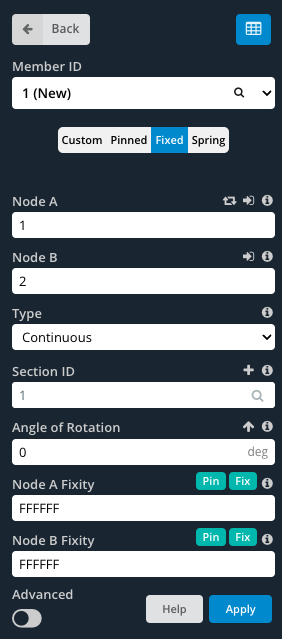

To specify custom values, ensure that the Op maat button is selected. This enables the end fixity fields to be edited.

How to tell Member End Fixity while looking in the model space

When modeling with members, it is convenient to know the membersend fixity without having to click on each member individually. Standaard, when members are modeled they have fully fixed, of Kader, end fixities (FFFFFF). The member looks like a single line between nodes:

als je meer wilt weten over waarom ik voor een vastgezette ondersteuning heb gekozen 1

When any of the degrees of freedom are released, the member will have a small dot near the end of the member (as shown below circled in red). Bijvoorbeeld, for members with pinned, of Truss, end fixities (FFFRRR), the member would look like this:

als je meer wilt weten over waarom ik voor een vastgezette ondersteuning heb gekozen 2

Further Explanation

For more information on member fixities, SkyCiv has a technical article (including a video) in onze blog, gericht op how to model member fixities:



Voorbeeld: How to model pin connections or hinges

In dit voorbeeld, we zullen een eenvoudige pinverbinding maken, zoals een scharnier. Begin met creëren 3 knooppunten en ze verbinden met 2 leden. In dit voorbeeld node, 2 zal het scharnier zijn.

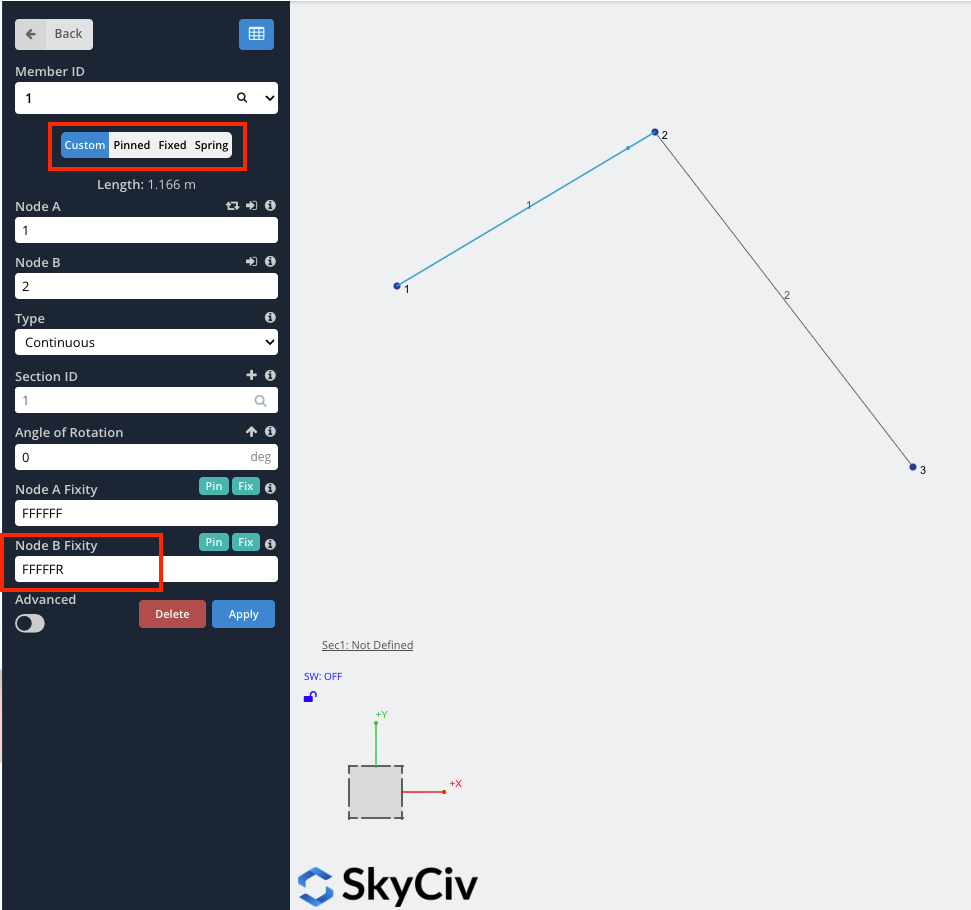

Selecteer lid 1 om het menu voor de instellingen te openen. Klik op de “Op maat” option to allow you to edit the fixity values. We want the hinge to be at node 2, which for member 1 is de “Knooppunt B” end of the member. This means we need to edit the “Knooppunt B Fixiteit”. Since we want the hinge to be able to rotate about its local z-axis, we set the z rotational fixity (the 6th character code) from F to R.

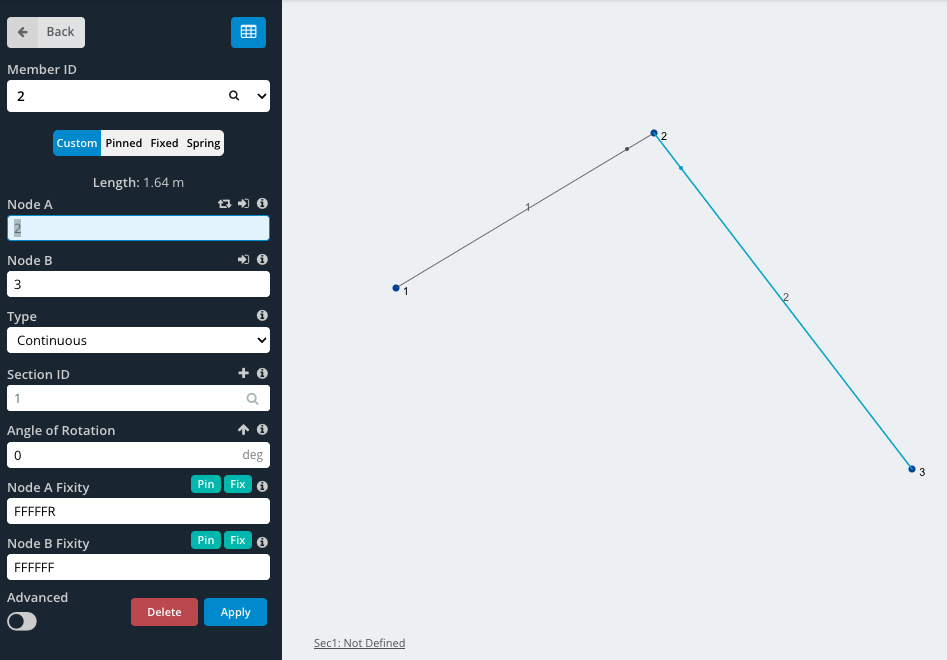

Selecteer lid 2 to bring up its menu. Klik op de “Op maat” knop. Note that node 2 is de “Knooppunt A” einde van dit lid. Dit betekent dat we de “Knooppunt A Fixity”. Zoals eerder, verander de lokale-z rotatie-fixiteitswaarde van F in R.

The hinge that rotates about its local z-axis is now complete. Notice that a dot appears at the end of the member that has a rotation release.

More Information

Voor meer informatie, SkyCiv has a further explanation on how to model a hinge, using Structural Analysis Software.

Video: Explaining degrees of freedom and fixity codes
