Propriétés de la section et soumission

Calculating the section properties and submitting them to to be used by other areas of SkyCiv’s software is the primary purpose of the Section Builder.

Calculating Section Properties

After a section has been added on the design area, the section properties can be calculated by clicking the ‘Calculate’ bouton.

Un certain nombre d'outils utiles sont à votre disposition dans le générateur de section 6
Notice that a menu will open up on the right which tabulates the section property results. The results are separated into properties for geometric, moment d'inertie, modules de section élastique, tondre, et torsion.

Submitting

SkyCiv’s Section Builder is integrated into SkyCiv Beam and SkyCiv S3D. Ce faisant, chaque fois que des membres sont créés, ils peuvent se voir attribuer une coupe créée avec le générateur de sections de SkyCiv. Essentiellement, les propriétés de section calculées sont introduites dans les autres modules logiciels pour une analyse structurelle plus approfondie.

Adding a Section in SkyCiv Beam

In SkyCiv Beam, the Section Builder is accessed by clicking ‘Add/Edit Section’.

Adding a Section in SkyCiv Structural 3D

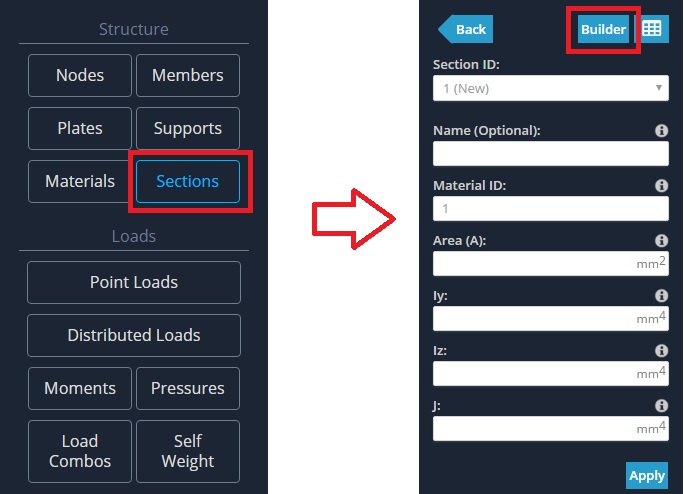

Dans SkyCiv S3D, the Section Builder is accessed by clicking the ‘Sections’ bouton de menu, and then clicking the ‘Builderbutton at the top of for form.

After a section has been created, to submit your section to your beam/member, simply click the ‘Submit’ bouton. Note that the ‘Submitbutton does not exist on the standalone version of Section Builder. Au lieu, you need to access the version of Section Builder which is integrated into Beam or S3D to submit your section.

Un certain nombre d'outils utiles sont à votre disposition dans le générateur de section 7
