此页面上提供的信息旨在展示 CSA A23.3 条款的部分设计收敛性，可通过 SkyCiv 实现隔离基础. 所有示例均参考以下书籍:
书 1: Svetlana Brzev 和 John Pao. 钢筋混凝土设计: 一种实用的方法, 2009.
例 # 1 Design of Axially Loaded Isolated Footing
参考: 书 1, p.605.
描述
A typical cross-section of a square-shaped spread footing supporting a 500 mm square concrete interior column is shown in the figure below. The column carries a specified dead load of 1000 kN and a specified live load of 1000 千牛. The allowable soil bearing pressure is 250 千帕.
几何和材料特性

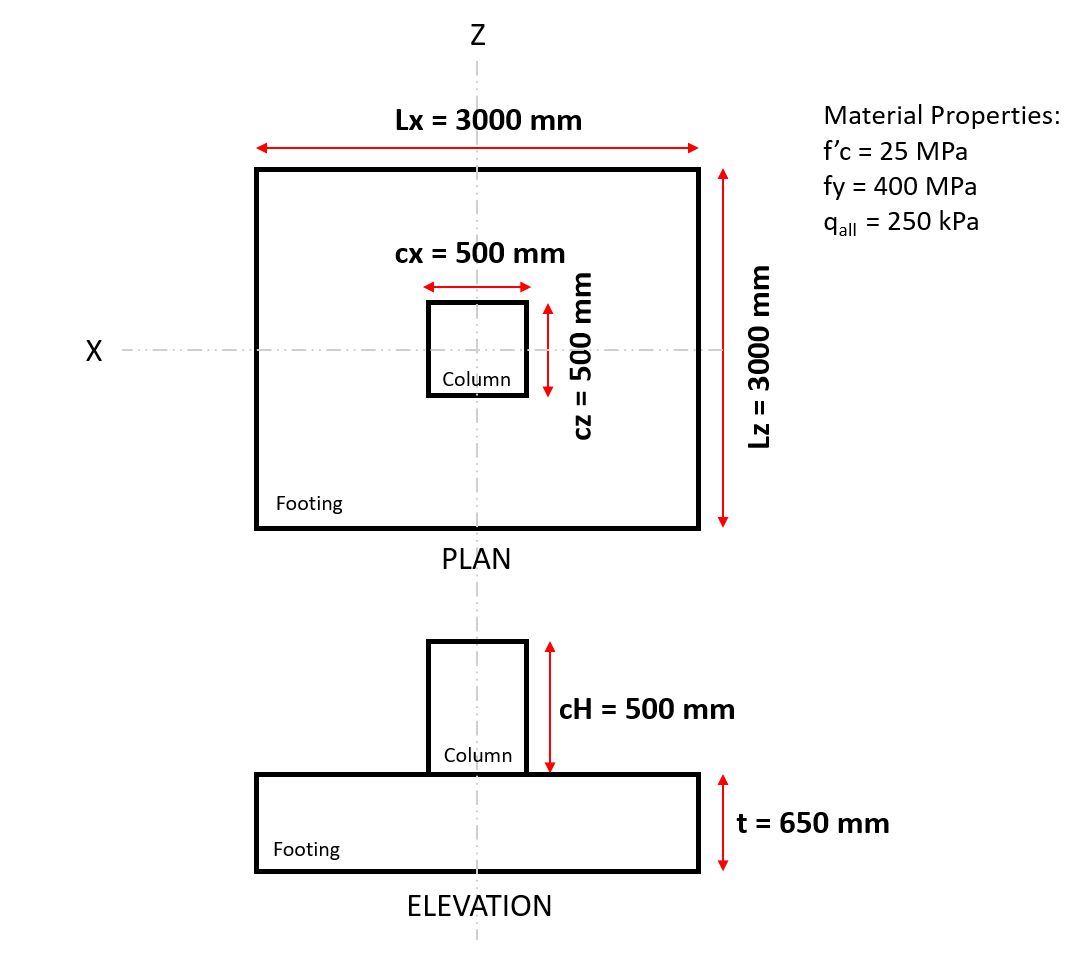

数字 2: 基础模型和材料属性示例 #1
载入中
考虑两种静载荷情况:
\( \文本{d} = 1000 \文本{ 千牛} \)
\( \文本{大号} = 1000 \文本{ 千牛} \)
The results of service and factor load combination are in computed in reference of NBCC 2010.
分析
使用刚性常规方法进行分析. 见 隔离基础用户手册 有关使用 SkyCiv 基金会的更多说明.
结果比较
下表中比较了最显着的结果:
| 结果 | ||
|---|---|---|
| 参数 | Book Reference | SkyCiv |
| 负荷 | ||
| SLS | 2000 | 2141.01 |
| 超低硫 | 2750 | 2926.26 |
| 土压力 | ||
| qf | 305 | 325.14 |
| 单向剪切 | ||
| 实际剪切 | 640 | 725.47 |
| One Way Shear Capacity | 730 | 753.7 |
| 两向剪 | ||
| bo | 4.1 | 4.2 |
| Punching shear force | 2750 | 2567.8 |
| Two Way Shear Capacity | 2734.29 | 2852.8 |
| 弯曲度 | ||
| 当前时刻 | 715 | 762.05 |
| 力矩容量 | 715 | 797.66 |
笔记: Discrepancies on some values are due to the following:
*Actual self weight of column and footing are considered in SkyCiv. 此外, SkyCiv requires a column height greater than zero.
*SkyCiv calculates actual measurement of the effective depth for both directions.
SkyCiv Foundation module offers an innovative and user-friendly interface for the design and analysis of an isolated footing in accordance with CSA A23.3-14.
想要试用SkyCiv的Foundation Design软件? 我们的免费工具允许用户执行负载计算，而无需任何下载或安装!
