How it works
PDF annotations to analysis, in 3 steps…
Upload and annotate your PDF drawings to scale

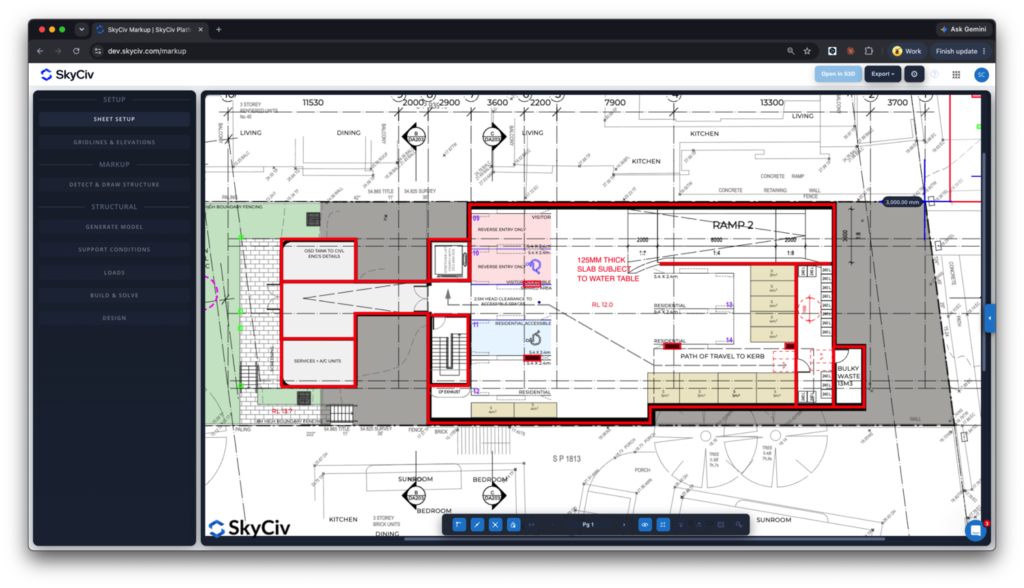

Upload your PDFs, we’ll automatically detect your existing annotations. You can even SkyCiv Markup to annotate additional elements.
Aligns your sheets and detects structural elements

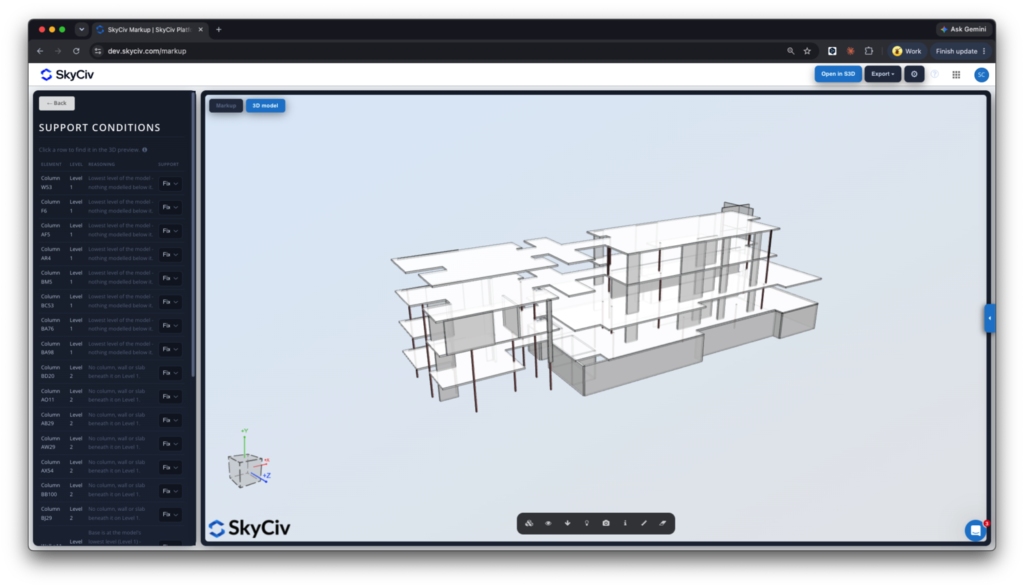

We’ll read your annotations and turn them into a scaled, accurate structural analysis model. The model will be aligned to gridlines for accuracy and reliability
Export to your preferred structural analysis products

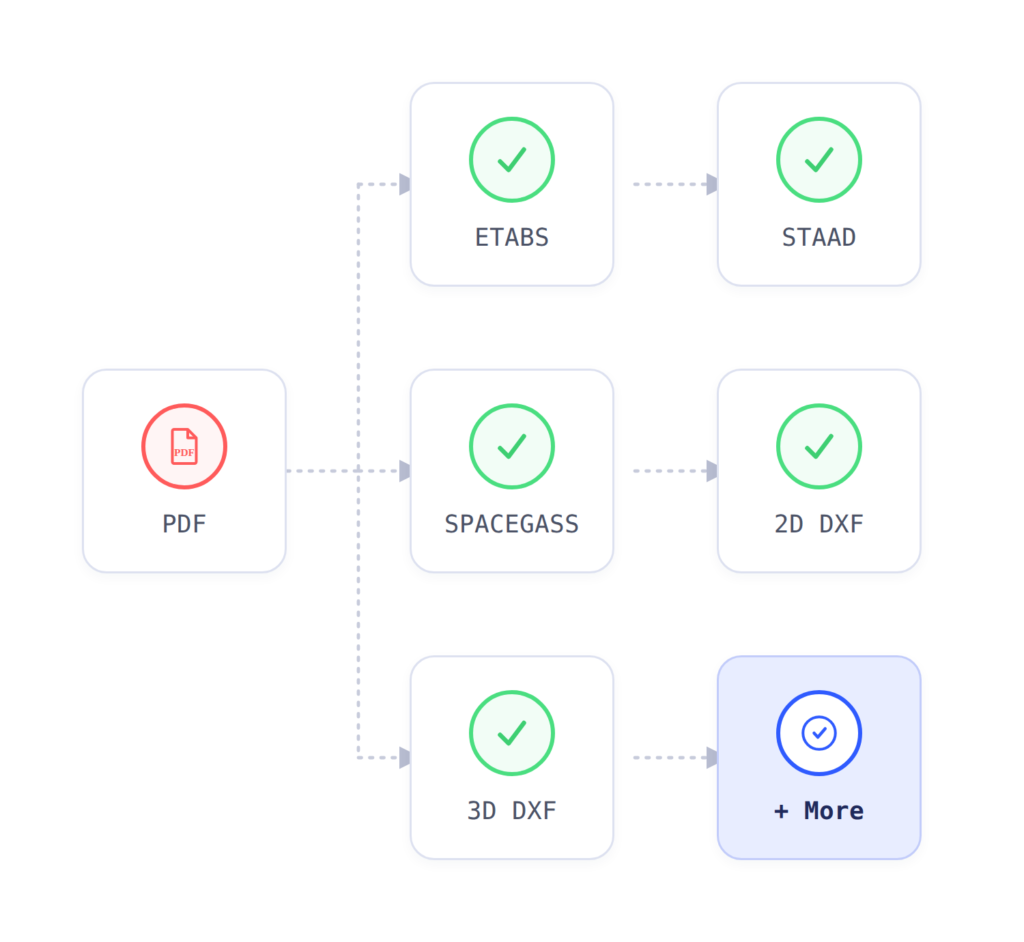

SkyCiv markup will generate an accurate analysis model, which can be exported to ETABS, STAAD, SkyCiv, SPACEGASS and 2D/3D DXF for general importing.
core features
A unique workflow, completely integrated and seamless

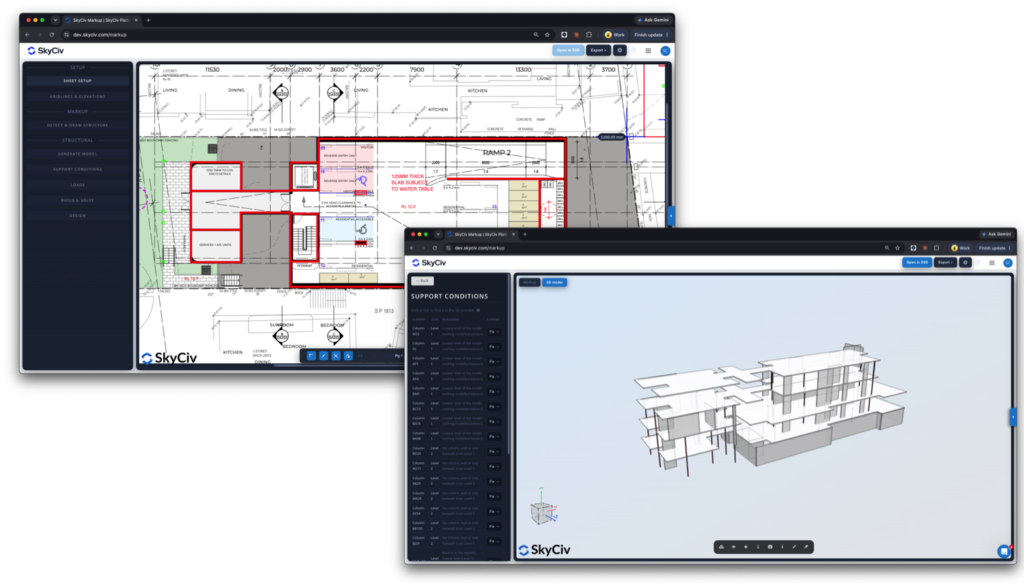

Save time going from PDF – Analysis and reduce re-work by quickly iterating your designs
Overview
- Set your scale, we’ll also attempt to automatically extract this information
Set your datum – this will align your sheets to ensure your building is built accurately
Define your elevations – which will be used to generate the floors in your structural analysis model
Users can also run a test-analysis to ensure the model returns accurate dead-load cases before exporting
Changes come through? Simply swap out your PDFs with the updated document, and adjust your annotations to match
Annotating software, built for structural engineers
SkyCiv Markup allows engineers to quickly markup architectural drawings with these easy built-in features.

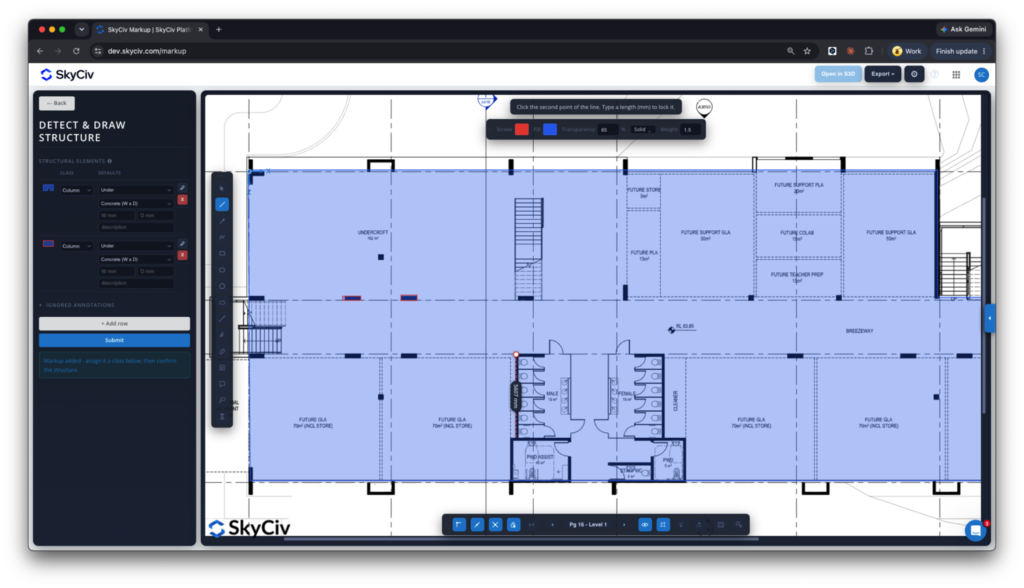

Automatically detects existing annotations, or add your own

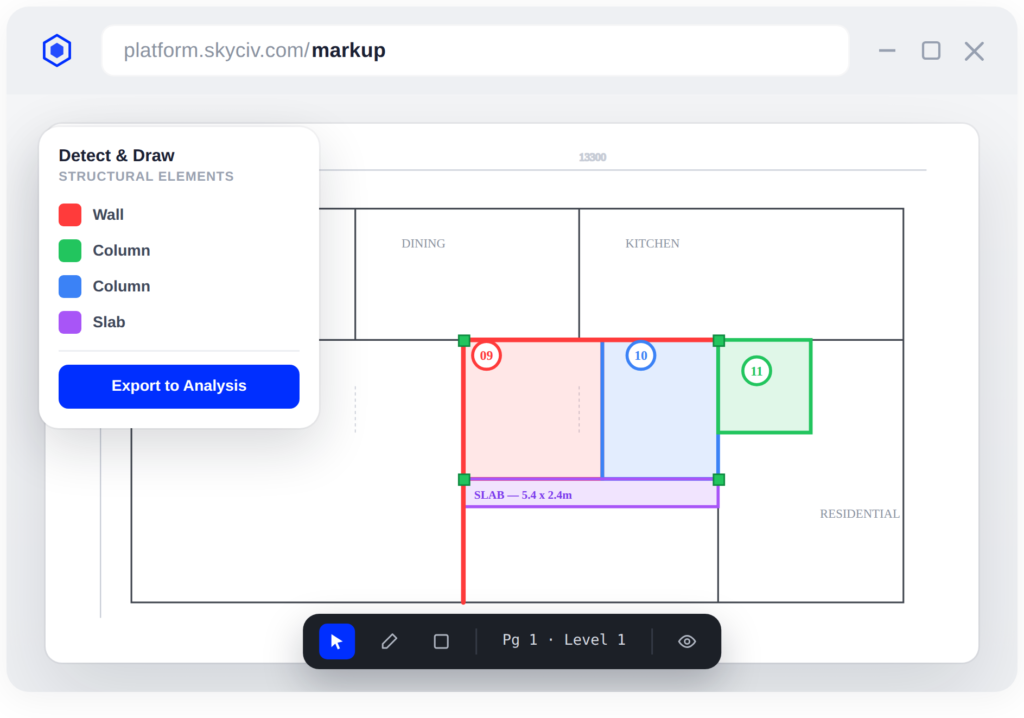

Use built-in lines, polygons, polylines, revision clouds, call outs, rectangles for your structural elements
All your favourite shortcuts
Snaps to gridlines to ensure your structure is aligned and accurate
Import section outlines to scale, from our library of over 25,000 sections
Apply loads for faster designs
Since you’ve already marked your columns, walls and slabs – we can use that information to perform a load takedown. This is independent of our FEA solver, so the results offer an independent review of your load paths.
Apply loads to your beams, tributary areas will automatically be calculated and used in your analysis model.
All design modules feature detailed calculation reports – no more black boxes!
Build your structural engineering models in minutes
Once defined, your annotations will be turned into columns, beams, walls and slabs to generate an accurate and solve-ready structural analysis model.
Run tests to ensure your structure is built correctly, with no connectivity issues
Elements snapped to grid and each other for accurate model generation
Define supports automatically
Sheets are aligned to a common datum to ensure floors are aligned
Integrates with your existing workflows
Don’t re-invent the wheel; just save time in your existing design flows.
Import PDFs that are already annotated – we’ll automatically detect them
Import a fresh PDF and start annotating using built-in tools
Export to analysis products: STAAD, ETABS, Spacegass
Export to PDF as a flat PDF
Export to Structural 3D – meshed and ready to solve
No need to re-invent your workflow – go from PDF to your favourite analysis products, in minutes.
Powerful Integrations,
Zero Disruption
