Handeling Unit Systems

Automatic Unit Conversion

Quick Design includes built-in functionality for automatic unit conversion.
To enable this feature, add the default_unit_system key to the config.json meta object.

Configuration

Key	Supported Values
default_unit_system	metric or imperial

The unit conversion system applies to all supported units, including superscript notations for squared and cubed units (e.g., mm² or mm³).

Standard Units

To maintain consistency across Quick Design, use the following standard units whenever possible:

Quantity	Metric Default Unit	Imperial Default Unit
Length	mm	in
	cm	in
	m	ft
Force	kN	kip
Moment	kN-m	kip-ft
Stress/Pressure	Pa	psi
	kPa	psi
	MPa	ksi

tip

Using the units in the table above ensures more reliable automatic unit conversion.
For example, prefer "kN-m" over alternatives like "kN.m" or "kn-m".

Overrides

Use the following override options to customize the automatic unit conversion system:

Override Key	Description
convert_to	Specifies the default unit for the alternate unit system.
converted_default	Sets the default value for the alternate unit system.
converted_step	Defines the default step size for the alternate unit system.

Manual Unit Conversion

If you need to report in both unit systems and require greater control over the unit system, manual unit conversion is recommended.

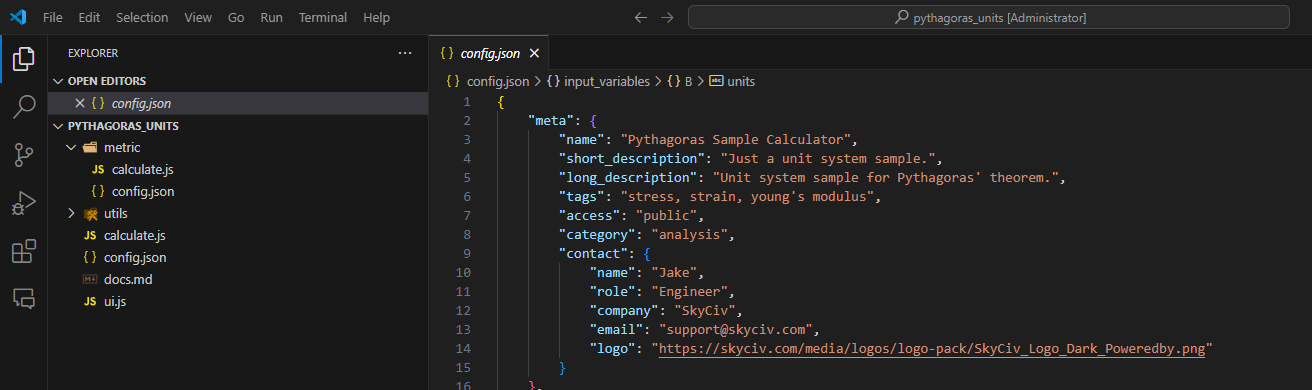

To enable manual unit conversion, do not include the default_unit_system key in your config.json. Instead, create a folder for the alternate unit system (either metric or imperial), with its own calculate.js and config.json files, as shown in the screenshot below:

In this system, both the json and utils directories are shared between the original and alternate unit Quick Design.

The following files can be shared or unique to each unit system:

1. ui.js
2. docs.md
3. renderer.js

When using this system both the json and utils are shared between both the original and alternate unit Quick Design.

The following files can be shared or unique to each unit system:

1) ui.js 2) docs.md 3) renderer.js
